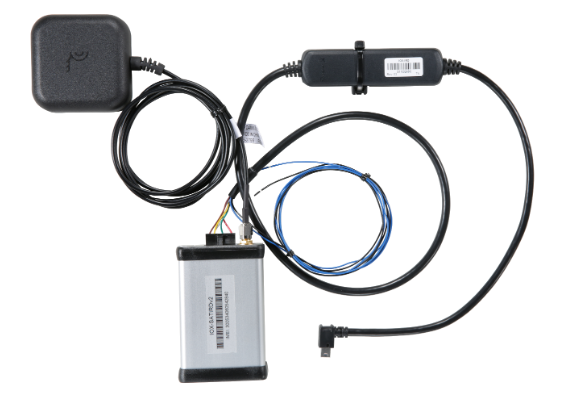

GEOTAB - MODEM SATELLITE IRIDIUM - IOX-SATIRDv2
For the most up-to-date version of this document, visit: goo.gl/MHteCI
Iridium satellite
If a vehicle is in an area with no cellular or network connection, the Iridium® Satellite Modem allows the Geotab® GO™ device to communicate over the Iridium Network. With the Iridium Satellite Modem, users can continue to track their fleet even when cellular connectivity is lost.
! IMPORTANT: Partner preplanning: If installation takes place in an area of no or poor cellular coverage, the Partner must power up the Geotab GO device and all IOX accessories (IOX-SATIRDv2) in an area of good cellular connectivity and sequence ignition to ensure the firmware is up-to-date on all devices.
Alert button notification
The IOX-SATIRDv2 allows the driver to send a top priority Emergency message through the satellite network to MyGeotab® by pressing an alert button (not included). For more information, refer to step 8 of the installation instructions.
Technical specifications and features
| Weight |
70 g |
| Size |
Overall Length: 1810 mm Widest Point: 31 mm W × 16 mm H |
| Housing |
PC+ABS clamshell casing |
| Interfaces |
CAN: 500 kbps (for daisy chaining) RS-232 serial interface |
| Inputs |
Emergency Switch Wire: Open — shorted to ground |
| Nominal Input Voltage |
12 V / 24 V |
| Power Output |
Iridium Interface: 900 mA @ 12 V/24 V |
| Current Draw IOX-SATIRDv2 on GOx daisy chain |
40 mA at 12 V / 24 V Operating mode (typical/nominal current draw) 100 mA at 12 V / 24 V Operating mode (max. current draw) 0.4 mA at 12 V / 24 V Sleep mode (min. current draw) |
| Temperature Rating |
−40 ℃ to +85 ℃ |
| Connectors |
Iridium Satellite Antenna Connector: SMA male plug Iridium Satellite Modem Connector: SMA female jack Male Mini-USB Type-B Connector: Daisy chain power and CAN in Female Mini-USB Type-B Connector: Daisy chain power and CAN out Molex 12-pin Connector 43025-1200: Iridium modem 1: Brown - GND 2: White - DTR 4: Green - RX 6: Red - PWR 8: Yellow - TX Molex Female Terminal 43030-0001 |
| Installation |
|
| Compatible Devices |
All GO7® and newer devices and variants |
| GO9 can source a maximum total current to the IOX in Daisy Chain |
2500 mA at 12 V/24 V ✱ NOTE: For each IOX in the Daisy Chain, add the Max Current draw, and do not exceed the Max. Total IOX Current draw. |
