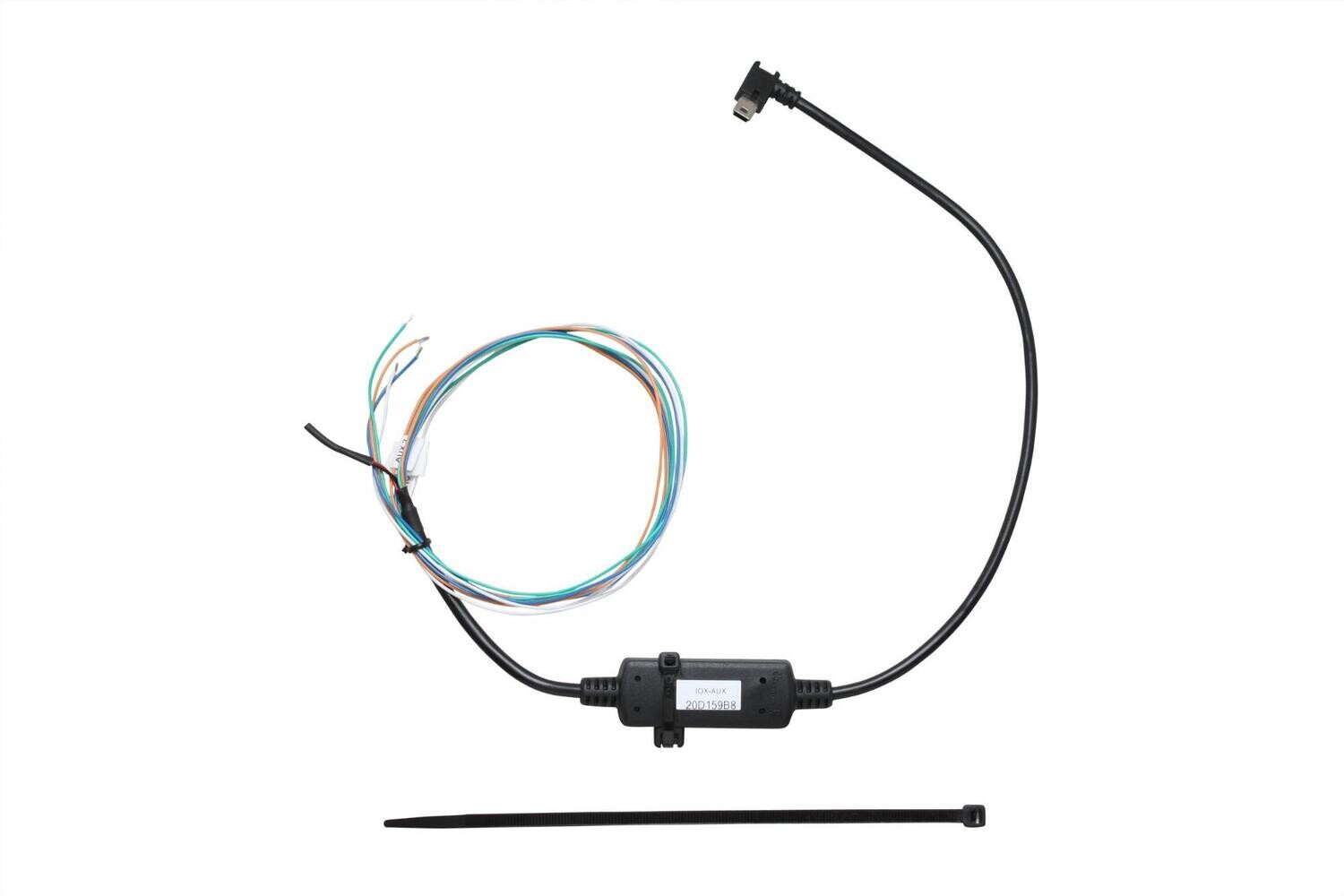

GEOTAB - IOX-AUXM
For the most up-to-date version, please visit: goo.gl/srUWJY
The IOX-AUXM monitors up to eight signals from your vehicle in real-time — providing additional insight into the condition of your fleet.
Features
- Monitor up to 8 inputs at any time with two IOX-AUXMs
- Self-learning input triggers
- Supports GND–Float, GND–Driven, and Float–Driven circuits
IOX Hardware Technical Specifications
| Weight |
46 g |
| Size |
Overall length: 1140 mm L Widest point: 31 mm W × 16 mm H |
| Housing |
PC+ABS clamshell casing |
| Interfaces |
CAN: 500 kbps (for daisy chaining) |
| Inputs Available |
AUX1, AUX2, AUX3, AUX4 or AUX5, AUX6, AUX7, AUX8 |
| Nominal Input Voltage |
12 V / 24 V |
| Resistance |
Input Impedance of each AUX: 30.3 kΩ or 80.6 kΩ (depending on input voltage range) Driving Circuit Resistance must be less than 100 Ω |
| Input Logic Levels |
GND—Float, IOX™ reports Low ‘0’ when input floating, IOX reports High ‘1’ when input <100 mV Float—Driven, IOX reports Low ‘0’ when input floating, IOX reports High ‘1’ when input >3.3 V GND—Driven, IOX reports Low ‘0’ when input <100 mV, IOX reports High ‘1’ when input >3.3 V |
| Input Type Detection |
Automatically identifies GND-Float, GND-Driven, and Float-Driven, driving circuits with capacitive loading of <200pF |
| Grounding |
The grounds between the IOX and the external circuit being measured should be common |
| Current Draw IOX-AUXM on GOx daisy chain |
40 mA at 12 V / 24 V Operating mode (typical/nominal current draw) 100 mA at 12 V / 24 V Operating mode (max. current draw) 0.4 mA at 12 V / 24 V Sleep mode (min. current draw) |
| Temperature Rating |
−40 ℃ to +85 ℃ |
| Connectors |
Molex 8-pin Connector 43020-0800 4. White - AUX 4 Molex Male Terminal 43031-0001 Male Mini-USB Type-B connector: Daisy chain power and CAN in Female Mini-USB Type-B connector: Daisy chain power and CAN out |
| Installation |
Male Mini-USB connector connects to the GO™ device or another IOX Input wires connect to the intended circuit Wires covered by heat shrink must be cut for IOX to operate as AUX 5 to 8 |
| Compatible Devices |
All GO7® and newer devices and variants |
| GO9® can source a maximum total current to the IOX in Daisy Chain |
2500 mA at 12 V/24 V ✱ NOTE: For each IOX in the Daisy Chain, add the max. current draw, and do not exceed the max. total IOX current draw. |
